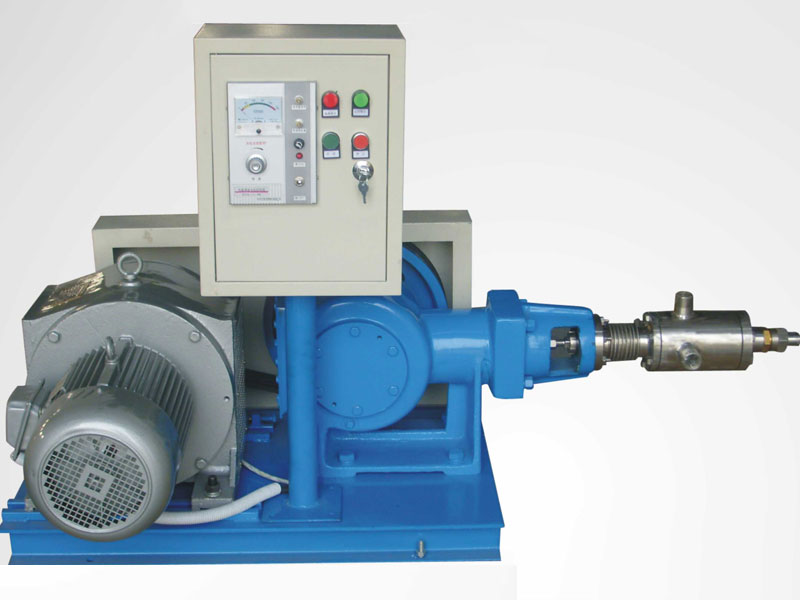

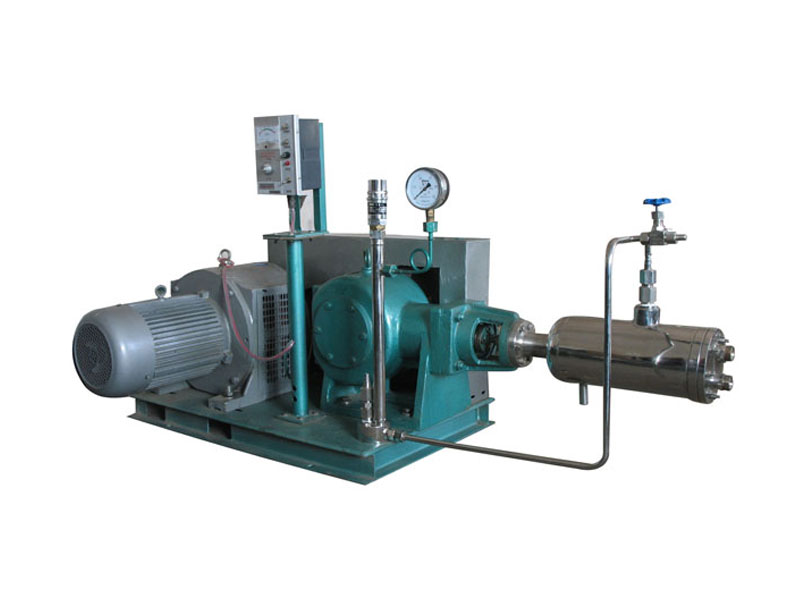

Cryogenic liquid Cylinder Filling Pump

  • Model: SVOC30-80/165
  • Type: Single Horizontal Piston
  • Flow Range L/h: 30-80
  • Inlet Pressure Mpa: 0.02-1.6(MPa)
  • Max Pressure Mpa: 16.5(MPa)

We're here to help:

Easy ways to get the answers you need.

chat
  • Cryogenic liquid Cylinder Filling Pump
  • Cryogenic liquid Cylinder Filling Pump
  • Cryogenic liquid Cylinder Filling Pump
  • Cryogenic liquid Cylinder Filling Pump
  • Cryogenic liquid Cylinder Filling Pump
  • Technical Data
  • Specifications
  • Inquiry

Model Type Flow Range L/h Inlet Pressure Mpa Max Pressure Mpa
SVOC30-80/165 Single Horizontal Piston 30-80 0.02-1.6(MPa) 16.5(MPa)
SVNB50-150/165 50-150
SVNB100-450/165 100-450
SVMB300-600/165 300-600
SVMA400-800/165 400-800
DVNA400-1000/165 Double、 Horizontal Piston 400-1000 0.02-1.6(MPa) 16.5(MPa)
DVMB600-1200/165 600-1200
DVMA800-1600/165 800-1600
SVNB100-200/200 Single、 Horizontal Piston 100-200 0.02-1.6(MPa) 20.0(MPa)
SVNB200-450/200 200-450
SVMB300-600/200 300-600

Liquids Pumped
LO2 , LN2 , LAR , LNG
Technical Parameters
♦plow:30-1600L/h
♦max discharge pressure:15Mpa~20Mpa

Optional Configuration

♦ Frequency converter
♦ Overpressure interlocking device
♦ Safe valve/Cryogenic check valve
♦ Temperature interlocking device of outlet
♦ Temperature interlocking device inside pump

Featuring
♦ Classic design, stable performance, service life of product can last as long 20 years
♦ Vacuum jacketed pump head with 10-5 torr vacuum degree and low cold loss
♦ Reliable sealing effect, filling service life is as many as 1500,000 cylinder times.
♦ Service life of piston ring is as many as 300,000 cylinder times.
♦ Convenient reparation, regularly Only 2 hours will be enough
♦ Can be kept functioning continuously for 24 hours
