Valve body:
Type | Single seat angle type valve casting ball |
Nominal diameter | DN20 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 |
Nominal pressure | PN1.6 PN4.0 PN6.4 |
Flanged standard | JB/T79.1-94~JB/T79.2-94 |
Material | Cast steel{ZG230-450};Cast stainless steel{ZG1Cr18Ni9Ti ZG1Cr18Ni12Mo2Ti} |
Valve cover | Standard form-17~230℃;low temperature form-60~-196℃;Bellows seal -40~+350℃ |
Stuffing | PTFE ;Teflon asbestos |
Structure | See the picture |

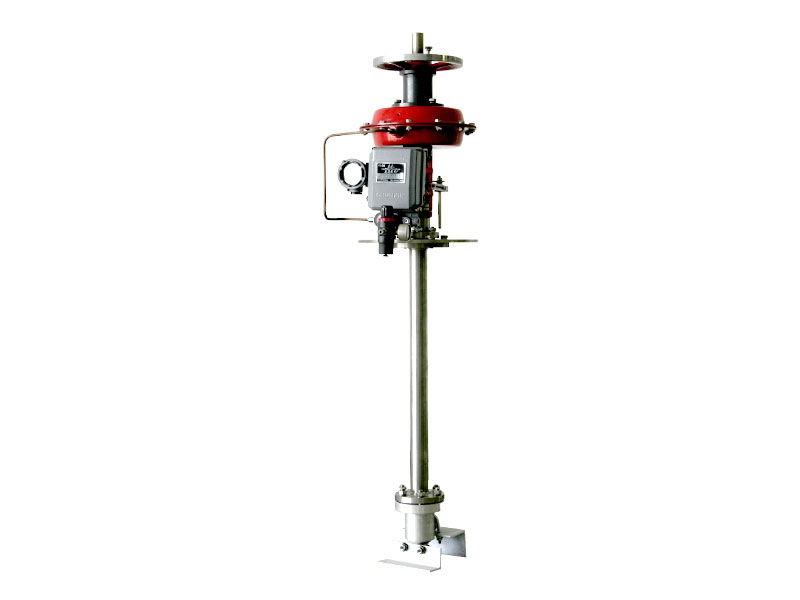

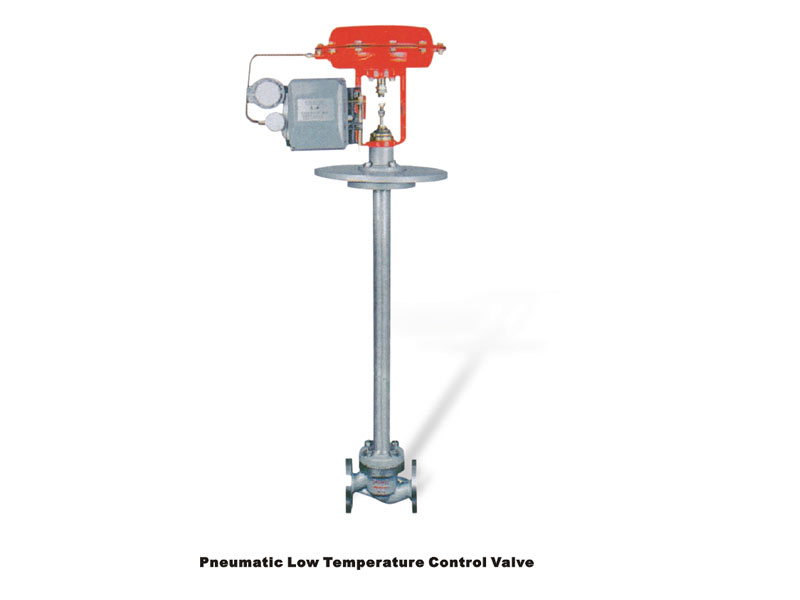

Detailed introduction to pneumatic diaphragm low temperature type regulating valve:

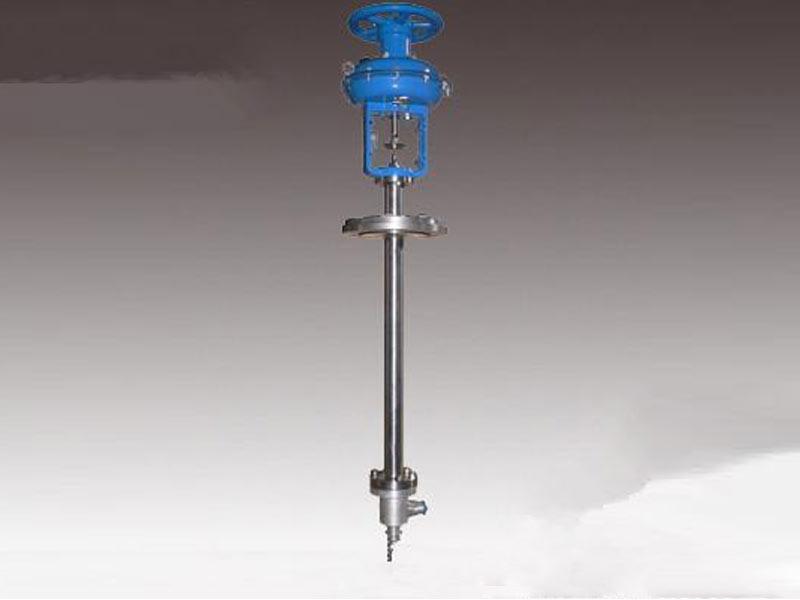

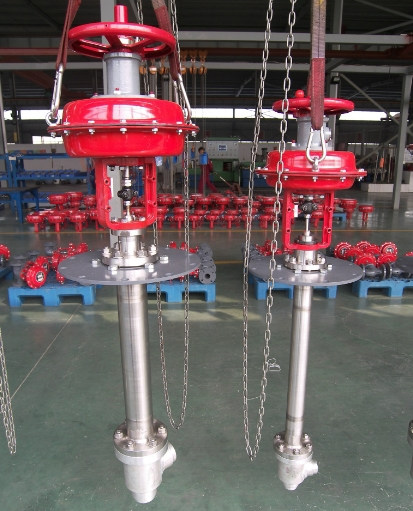

low temperature type, the valve using long-necked tube and bellow sealed structure which can be used for cryogenic -196 occasions
♦ Main technical parameters:
1) nominal size: DN 20-200mm (3/4"~8)
2) nominal pressure: PNMPa1.6\4.0\6.410.0 (ASME Class:150/300/400/600)
3) leakage class: ANSI IV/V/VI
4) flow characteristics: equal percentage, linear
