(One)Main performance and parameters:
1.1 Purpose: Air compressor in-let air filter
1.2 Working temperature: -
1.3 Relative humidity: <80%,Short time(like rain season)<100%
1.4 electrical safety: NEMA4,Industrial area
1.5 Filter size: ≥1um Filtration efficiency:>99.96%
≥0.5um Filtration efficiency:>96%
1.6 Initial resistance: <150Pa
1.7 Normal operation: 150 Pa ~ 650Pa
1.8 Alarm resistance: 1100Pa (
can be set)
1.9 Final resistance: 1200Pa (can be set)
1.10 Seismic intensities fortify: 7 degree
1.11 Equipment noise: <75dBA
1.12 Resistance measuring device security vacuum:0-3000Pa (can be set)
1.13Single Cartridge rated filtration capacity:
1.14 Self-cleaning air source pressure and consumption: 0.5 MPa ~0.65MPa,highest 0.9MPa,Air Consumption≤
/min
1.15 Control system power and consumption:AC220v/50HZ/250mA,Power consumption≤200W
1.16 Work Environment:Outdoor of industrial Area
1.17 Structure: Outdoor Vertical
(Two) Self-cleaning system
2.1 Pulse Width 0.16s
2.2 Pulse interval 60s
2.3
650Pa(can be set)
(Three) Self-cleaning mode
3.1 Self-cleaning program 150Pa~650Pa (unit interval 60s)
3.2 Difference in pressure self-cleaning 650Pa~1200 Pa(unit interval 30s)
3.3 Manual self-cleaning
LCD:Operating valve No., spacing interval、 valve actuation time、resistance value、alarm signal.
Provided in the control room 4~20maDCS two signals:stop start、Alarm(Dry contact)
Advantages of Control System :Disengage control from traditional relay, using dry contact combines with digital and analog, power electronic, large electric and weakly electric, The performance is more stable than other normal control system and system can extension, interlock, remote etc.
Dust removal(Air filter)
Dust removal means a kind of operation which to separate particles from gas and particulate mixture.
Different region of air have different dust concentration, Normally, Particle which diameter greater than 100μm will quickly dropped away by force of gravity, so there is no separation problem. On the other hand, Particle which diameter smaller than 0.1μm cannot raise serious questions. As the object of dust removal the particle diameter between 100μm~0.1μm, Diameter greater than 10μm particles are easily separate and difficultly to separated is diameter between 10~0.1μm, especially diameter below 1μm. Air filters into coarse grain filter, medium efficiency filter, and high efficiency filter.
Coarse grain filter:Mainly used to remove particle diameter greater than 5μm large dust, filter have large capacity, lower resistance, and poor filtration efficiency
Medium efficiency filter:Mainly used to remove particle diameter around 1μm,,this filter have medium capacity and filtration efficiency
High efficiency filter:Filter can removal diameter greater than 0.1μm,low capacity, higher resistance but high filtration efficiency.
In air separation system can choose medium efficiency filter to removal particle diameter greater than1μm.
Air separation system usually use dust removal filtration device
Self-cleaning air filter、Bag filter

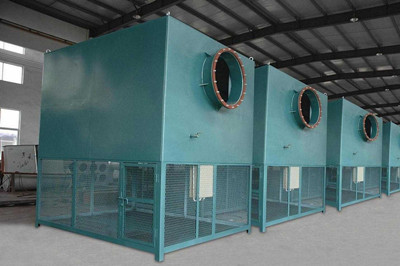

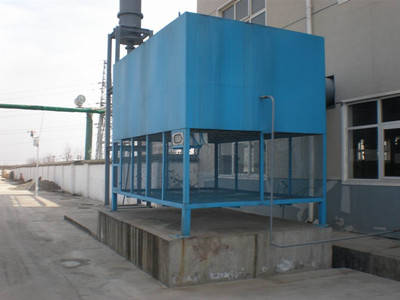

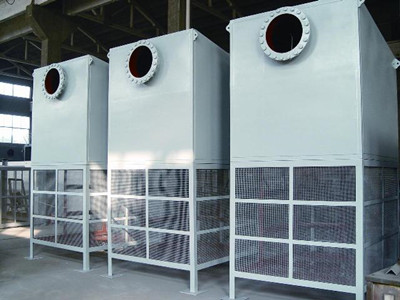

* Introduction of self-cleaning air filter

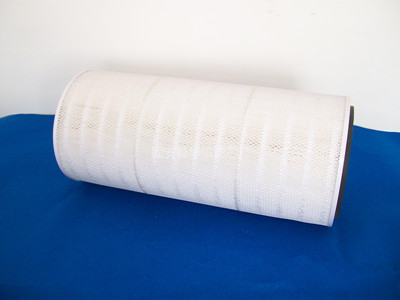

Material air filter currently it is most advanced Pneumatic self-cleaning air filter in the country, The function is to removal particles and dust from row air, Technical Features:High-efficiency filter parts, equipment life up to 1-2 years.
Wide range of application can apply to dusty and high moister region.
Modular design, Small occupation area, Easy way to installation and maintenance, can operator like on-line maintenance
PLC programmable controller and imported electromagnetic valve, self-pulsed blowback dust, Fully automatic operation. This PLC controller can be provided by sets of equipment, Placed next to the machine.
