oxygen plant for hospital
2014-11-30
General Hospital:

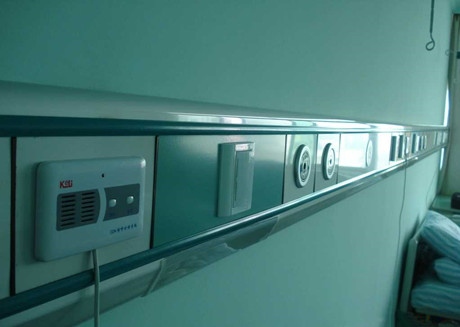

General ward beds:
(The number of beds *20%*2 LPM *60)/1000
The delivery room, operating room out in an ordinary hospital bed,
Emergency, emergency room, Center operating room, intensive care unit, ICU,CCU
(The number of beds *100%*8-10 LPM *60)/1000
Neonatal intensive care unit
(The number of beds *100%*5 LPM *60)/1000
High pressure oxygen cabin
People/*1*m3/hours
Ventilators, anesthesia machines and oxygen pressure are 3.5-4.5kgf/cm ³
Circulation working pressure up to 70-72psig (4.8-5.0kgf/cm2)
Output pressure oxygen host 65psig (4.5kgf/cm2)
① an ordinary hospital bed, standard: 1000 beds, oxygen, 20% flow 2L/min
Calculation: 1000x20%x2L/minx60min=24000L/h=24m ³/h
II the calculation standard operating room: 15, 100% oxygen rate, flow rate 10L/min
Calculation: 15x100%x10L/minx60min=9000L/h=9m ³/h
③ calculation standard ICU beds: 8 beds, oxygen, 100% flow 10L/min
Calculation of 8x100%x10L/minx60 min=4800L/h=4.8m3/h
④ hyperbaric oxygen Chamber calculation standards: class 20, oxygen rate 100%, 1M oxygen flow rate m³/h
Computing:/h =20m 20x100%x1m ³ ³/h
Summary: estimation of peak oxygen consumption: General Surgical +ICU beds + bed + high pressure oxygen cabin =57.8m3/h

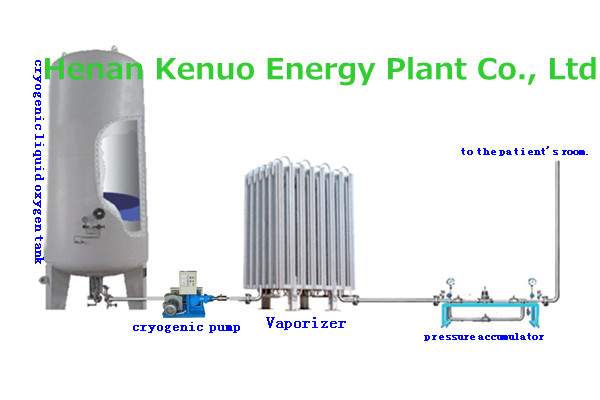

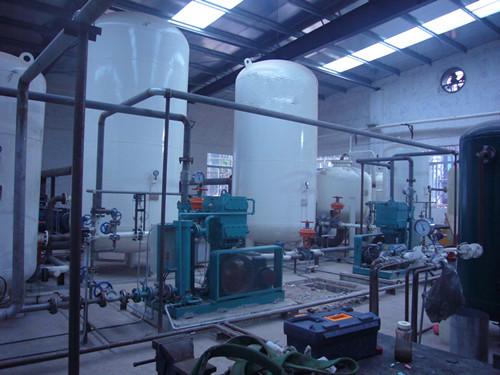

the oxygen gas from crygenic oxygen plant or PSA oxygen plant
