Technical parameters of air compressor
TYPE | Main features | Rated discharge m³/min | Rated discharge pressure Mpa | Rated speed r/min | Power kw | Overall size (L * w * h) | Weight kg |
V-0.251/8 | Two cylinder single stage air cooled motor | 0.21 | 0.8 | 1140 | 1.5 | 870*350*720 | 75 |
V-0.35/8 | Two cylinder single stage air cooled motor | 0.35 | 0.8 | 1140 | 2.2 | 1000*420*760 | 80 |
W-0.52/8 | Threecylinder single stage air cooled motor | 0.52 | 0.8 | 1190 | 3 | 1000*430*820 | 105 |
V-0.67/10 | Two cylinder single stage air cooled motor | 0.67 | 1 | 850 | 4 | 1290*460*920 | 160 |
ZY-0.8/12.5 | Two cylinder single stage air cooled motor | 0.8 | 1 | 920 | 7.5 | 1390*500*1050 | 255 |

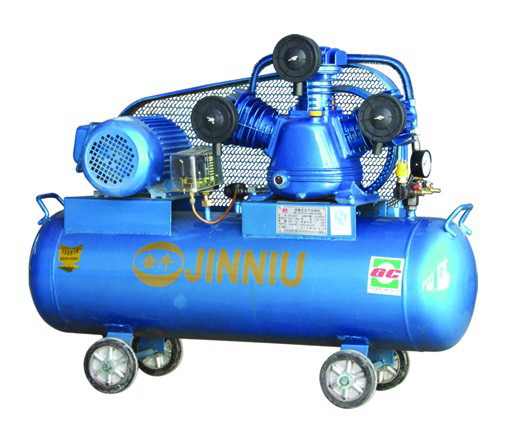

W-0.9/10 | Three cylinder single stage air cooled motor | 0.9 | 1 | 840 | 7.5 | 1290*460*950 | 190 |
W-1.0/10 | Three cylinder single stage air cooled motor | 1 | 1 | 1000 | 7.5 | 1390*500*1050 | 270 |
V-1.2/12.5 | Three cylinder single stage air cooled motor | 1.2 | 1.25 | 720 | 7.5 | 1390*550*1000 | 300 |
W-1.6/5 | Two cylinder single stage air cooled motor | 1.6 | 0.5 | 830 | 11 | 1700*790*1150 | 245 |
ZY-1.6/12.5 | Two cylinder single stage air cooled motor | 1.6 | 1.25 | 850 | 11 | 1700*800*1250 | 550 |
W-2.0/8 | Three cylinder single stage air cooled motor | 2 | 0.8 | 770 | 11 | 1700*800*1250 | 450 |
W-2.8/8 | Three cylinder single stage air cooled motor | 2.8 | 0.8 | 780 | 15 | 1700*810*1350 | 470 |
W-2.8/5 | Three cylinder single stage air cooled motor | 2.8 | 0.5 | 880 | 15 | 1960*860*1300 | 580 |
W-3.0/5 | Three cylinder single stage air cooled motor | 3 | 0.5 | 880 | 15 | 1960*860*1300 | 580 |
W-3.5/5 | Three cylinder single stage air cooled motor | 3.5 | 0.5 | 1000 | 15 | 1960*860*1300 | 655 |
VF-3/7 | Three cylinder single stage air cooled motor | 3 | 0.7 | 970 | 18.5 | 1500*1140*1270 | 852 |
V-3.0/7 | Three cylinder single stage air cooled motor | 3 | 0.7 | 970 | 18.5 | 1668*1440*1230 | 852 |
VFY-3/12.5 | Four cylinder single stage air cooled motor | 3 | 12.5 | 720 | 22 | 1860*900*1270 | 850 |
V-6/7 | Four cylinder single stage air cooled motor | 6 | 0.7 | 980 | 37 | 1840*1310*1340 | 1460 |
VF-6/7 | Four cylinder single stage air cooled motor | 6 | 0.7 | 980 | 37 | 1840*1310*1340 | 1460 |
W-0.6/30S | Three cylinder high pressure air cooled motor | 0.6 | 3 | 480 | 7.5 | 1560*520*1120 | 400 |
H-1.1/105F | Three cylinder high pressure air cooled motor | 1.1 | 10.5 | 900 | 15 | 1400*1030*860 | 493 |
W-1.2/30 | Three cylinder two stage air cooled motor | 1.2 | 3 | 760 | 15 | 1550*600*1250 | 500 |
W-1.0/30 | Three cylinder single stage air cooled motor | 1 | 3 | 760 | 11 | 1500*500*1100 | 450 |
WW-0.6/8 | Three cylinder single stage oil free air cooling | 0.6 | 0.8 | 760 | 4 | 1290*460*950 | 170 |
WW-0.9/8 | Three cylinder single stage oil free air cooling | 0.9 | 0.8 | 760 | 7.5 | 1290*460*950 | 270 |
WW-1.2/8 | Three cylinder single stage oil free air cooling | 1.2 | 0.8 | 760 | 11 | 1390*550*1100 | 300 |
Transmission mode | belt transmission | ||||||
Sliding mode | splashing | ||||||
Cooling mode | air cooling | ||||||
NoisedB(A) | ≤65 | ||||||
Lubricating oil consumption(g/h) | 10 |
