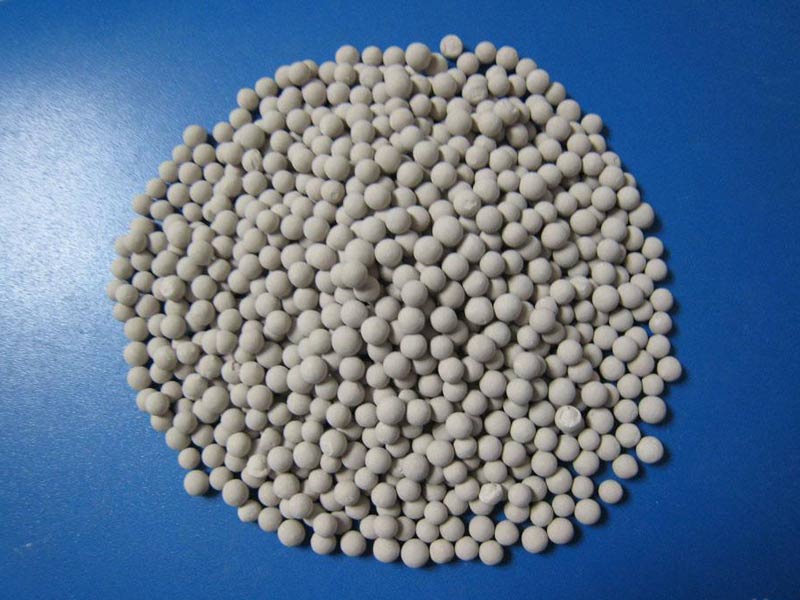

Molecular Sieve 5A

  • TYPE: 5A
  • Static Water Adsorption: ≥ 21.50%wt
  • Crush Strength : ≥ 7.00 lbs
  • Bulk Density: ≥ 0.68 g/ml
  • Loss on Ignition: ≤ 1.50 %wt

We're here to help:

Easy ways to get the answers you need.

chat
  • molecular sieve 5a
  • molecular sieve 5a
  • Technical Data
  • Specifications
  • Inquiry

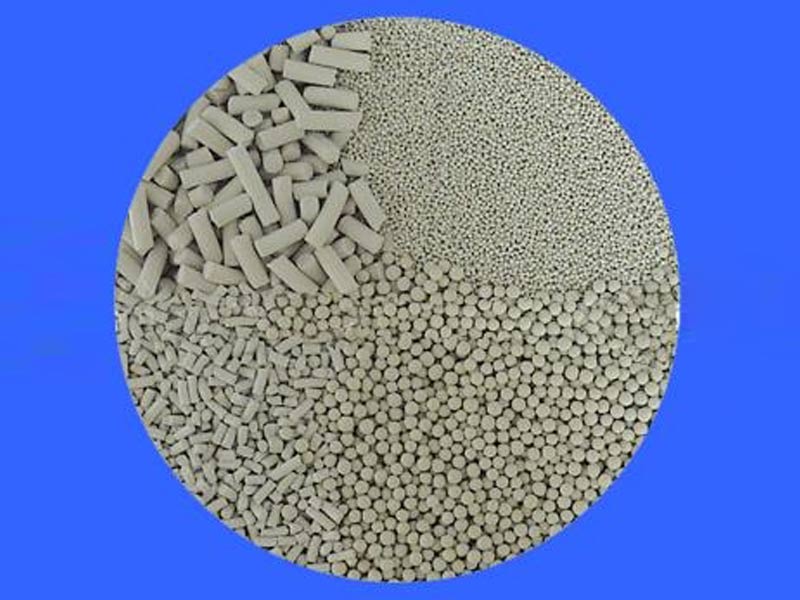

Property Unit Bead Pellet Note
8x12 4x8 1/16" 1/8"
Static Water Adsorption %wt ≥ 21.50 ≥ 21.50 ≥ 21.50 ≥ 21.50 RH50%, 25℃
Crush Strength N ≥ 30.00 ≥ 80.00 ≥ 30.00 ≥ 70.00 Avg. 25 beads
Crush Strength lbs ≥ 7.00 ≥ 18.00 ≥ 7.00 ≥ 16.00 Avg. 25 beads
Bulk Density g/ml ≥ 0.68 ≥ 0.68 ≥ 0.64 ≥ 0.64 Settle
Bulk Density lbs/ft3 ≥ 42.00 ≥ 42.00 ≥ 40.00 ≥ 40.00 Settled
Loss on Ignition %wt ≤ 1.50 ≤ 1.50 ≤ 1.50 ≤ 1.50 575℃, 1hr
Loss on Attrition %wt ≤ 0.10 ≤ 0.10 ≤ 0.30 ≤ 0.30 ~
Particle Ratio % ≥ 97.00 ≥ 99.00 ~ ~ ~

Packaging information: 25Kg/55lb carton or iron barrel packaging.

Type Carton Drum Super sack
Bead 25 kg/ 55 lb 140 kg/ 308 lb 1000 kg/ 2200 lb
Pellet 25 kg/ 55 lb 130 kg/ 286 lb 1000 kg/ 2200 lb

Kenuo’s molecular sieve 5A can adsorb any molecule with aperture <5A and is widely used for hydrocarbon separation, PSA and coadsorption. Specially developed molecular sieve 5A can also be used in PSA oxygen generator and PSA hydrogen purification process. Kenuo’s molecular sieve 5A has the advantages of high selective adsorption, high adsorption rate, excellent adsorption capacity and higher crush strength.
Application Areas:
1.Removing H2O, CO2 and H2S such as natural gas from various gas streams including hydrocarbon. Separating linear chain or branched chain hydrocarbon in bulk.
Production of high purity N2, O2, H2 by PSA.
